 Altera Nios USB Daughter Card

EZNIOSUSB - Provides instant USB connectivity for the Nios Development boards

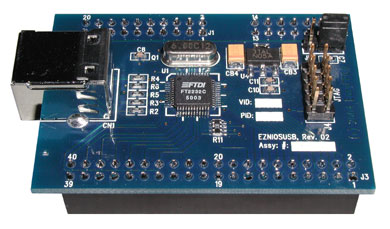

EZNIOSUSB - Altera Nios USB Daughter card

Datasheet: EZNIOSUSB Datasheet

Block Diagram: EZNIOSUSB Block Diagram

Schematics: ezniosusb_sch_02.pdf

Key Features:

  • Connects to the host PC via USB

  • Features FTDI FT2232C USB controller

  • USB data transfer rate up to 1 MB/s (One Mega Byte per second)

  • Compatible with 5-V and 3.3-V expansion connector groups

  • Simple FIFO-like interface (8 data bits, 2 control bits, 2 status bits)

  • FT2232C Configuration EEPROM interface

  • 8 general purpose IOs

  • JTAG header output for programming Nios (optional software required)

  • Small Form Factor (2.3 '' x 1.6 '')

  • Standard Type-B USB connector

  • No specific USB firmware programming required

  • Royalty free USB driver (Windows 98/Me/2000/XP/Server2003)

  • VB6/VB.NET/Delphi/C++ application examples

  • VHDL examples

Supported Nios Development Boards:

Applications:

  • Rapid prototyping and development of Altera APEX/Cyclone/Stratix Nios designs

  • IP development and testing

  • Data acquisition and control

  • Data generator

  • Test bench

  • and more

Cables and Accessories:

  • USB A->B cable

  • Documentation

  • Altera Quartus II Software Starter Suite CD

  • USB Drivers (Windows 98/Me/2000/XP/Server2003)

  • VB6/VB.NET/Delphi/C++ application examples

  • VHDL examples

  • JTAG programming software (optional)
